Belt Conveyor

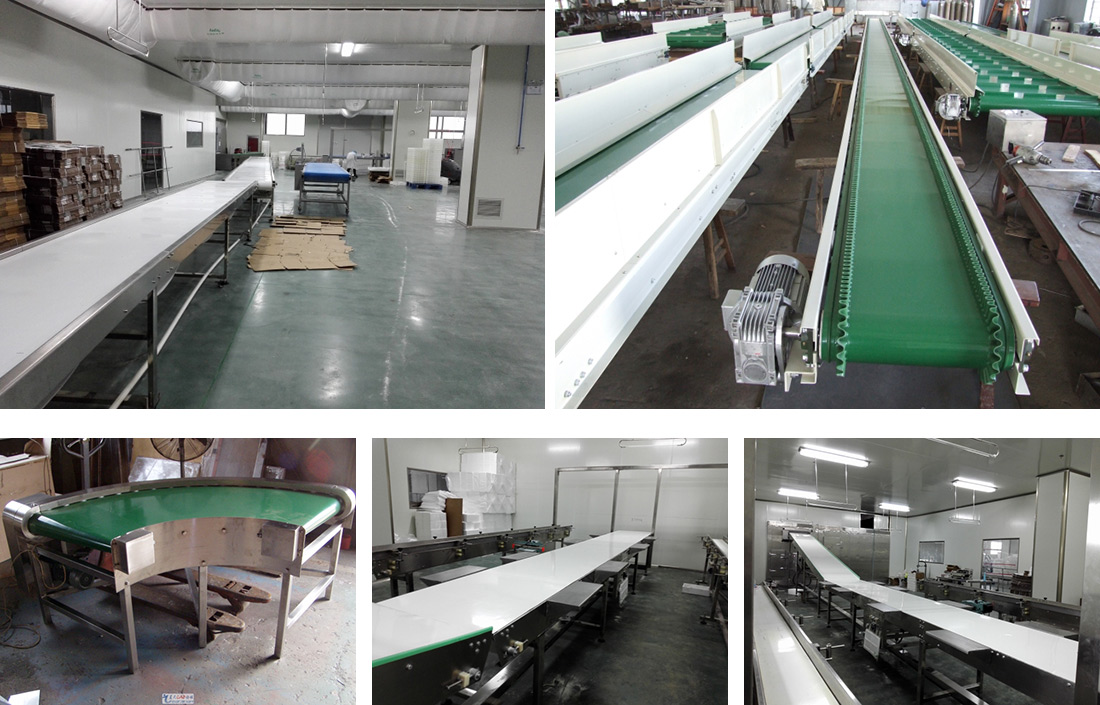

1.Turning belt conveyor angle can be divided into: 60 ° curved belt conveyor, 90 ° curved belt conveyor, 180 ° curved belt conveyor, or according to customer requirements tailor-made design and production.
2.Drive mode: geared motor drive, drum motor drive.
3.Speed control mode: frequency conversion speed control, infinitely variable speed.
4.Main Parameters: Belt width (mm) Conveying length (mm) Motor power (mm) Conveying speed (m/s) Conveying capacity (t/h)
5.The standard belt width is 200, 300, 400, 500, 600, 700, 800, 1000, 1200mm, etc. Other special specifications can also be used according to customer requirements.
6.Frame material: carbon steel.
Equipment features: smooth conveying, no relative motion between material and conveyor belt, can avoid damage to the conveyor, less noise, suitable for the working environment requires quieter occasions, simple structure, easy to maintain, less energy consumption, low cost of use.
Belt conveyor uses the continuous or intermittent movement of the conveyor belt to convey various kinds of light and heavy goods, which can convey various kinds of bulk materials, as well as various kinds of cardboard boxes, bags and other single piece of goods of small weight, with a wide range of uses.
The materials of conveyor belts are rubber, rubber-plastic, PVC, PU and so on. In addition to the transportation of common materials, the conveyor belts can also meet the transportation of oil-resistant, corrosion-resistant, anti-static and other materials with special requirements. Adopting special food-grade conveyor belt, it can meet the requirements of food, pharmaceutical, daily-use chemical and other industries.
Structure: trough belt conveyor, flat belt conveyor, climbing belt conveyor, side inclined belt conveyor, turning belt conveyor, telescopic belt conveyor and other forms, the conveyor belt can also be added to push the plate (plus push the plate belt conveyor), the side of the baffle (plus baffle belt conveyor), skirt (plus skirt belt conveyor) and other attachments to meet a variety of process requirements. The two sides of the conveyor are equipped with working table and light frame, which can be used as assembly line for electronic instrument assembly and food packaging.
Climbing belt conveyor width, climbing height, length can be customized according to customer requirements.
